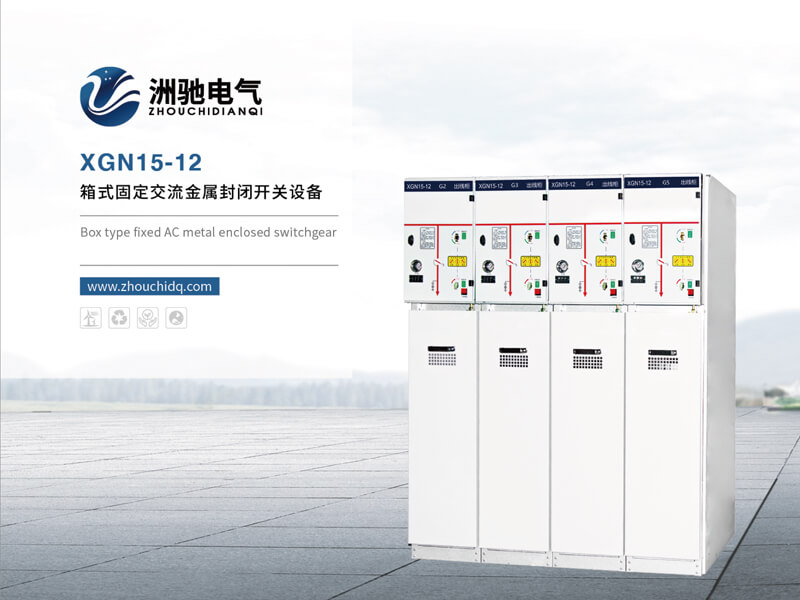

The XGN15-12 unitized AC metal-enclosed ring main switchgear (hereinafter referred to as the ring main unit) is a high-voltage electrical product independently designed and successfully developed by us after introducing foreign technologies and in accordance with the requirements of domestic rural and urban power grid transformation. All technical performance indicators fully comply with the standards of IEC62271-200:2003 and GB3906.
The main switch, operating mechanism and components of the ring main unit use original parts from ABB or the SFL-12/24 type switchgear assembled in China with imported parts. It can also be equipped with the original HAD/US type SF6 circuit breaker or the VD4-S type vacuum circuit breaker from ABB according to user needs. Its operating modes are divided into manual and electric.
The cabinet is riveted after being processed by a numerical control machine tool, with a protection level of IP3X, and has reliable mechanical interlocking and anti-misoperation functions. This product has extremely significant features such as small size, light weight, beautiful appearance, simple operation, long service life, high parameters, no pollution and less maintenance.
The XGN15-12 unitized AC metal-enclosed ring main switchgear is suitable for use in AC power networks with a frequency of 50Hz and a voltage of 12kV for the reception and distribution of electric energy. The main switch in the cabinet is an SF6 switch.
